Since your portal has both a production and a staging environment, please follow the steps below first for the production environment, and then repeat them for the staging environment.\
1. Register a new application on the Microsoft Identity Platform
Register a new application on the Microsoft Identity Platform by following the instructions on this page: Register an application on the Microsoft Identity Platform, with the following specifications:
- The application name should be “illuxiLMS Production” (*For the staging environment, use the name "illuxiLMS Staging"*).

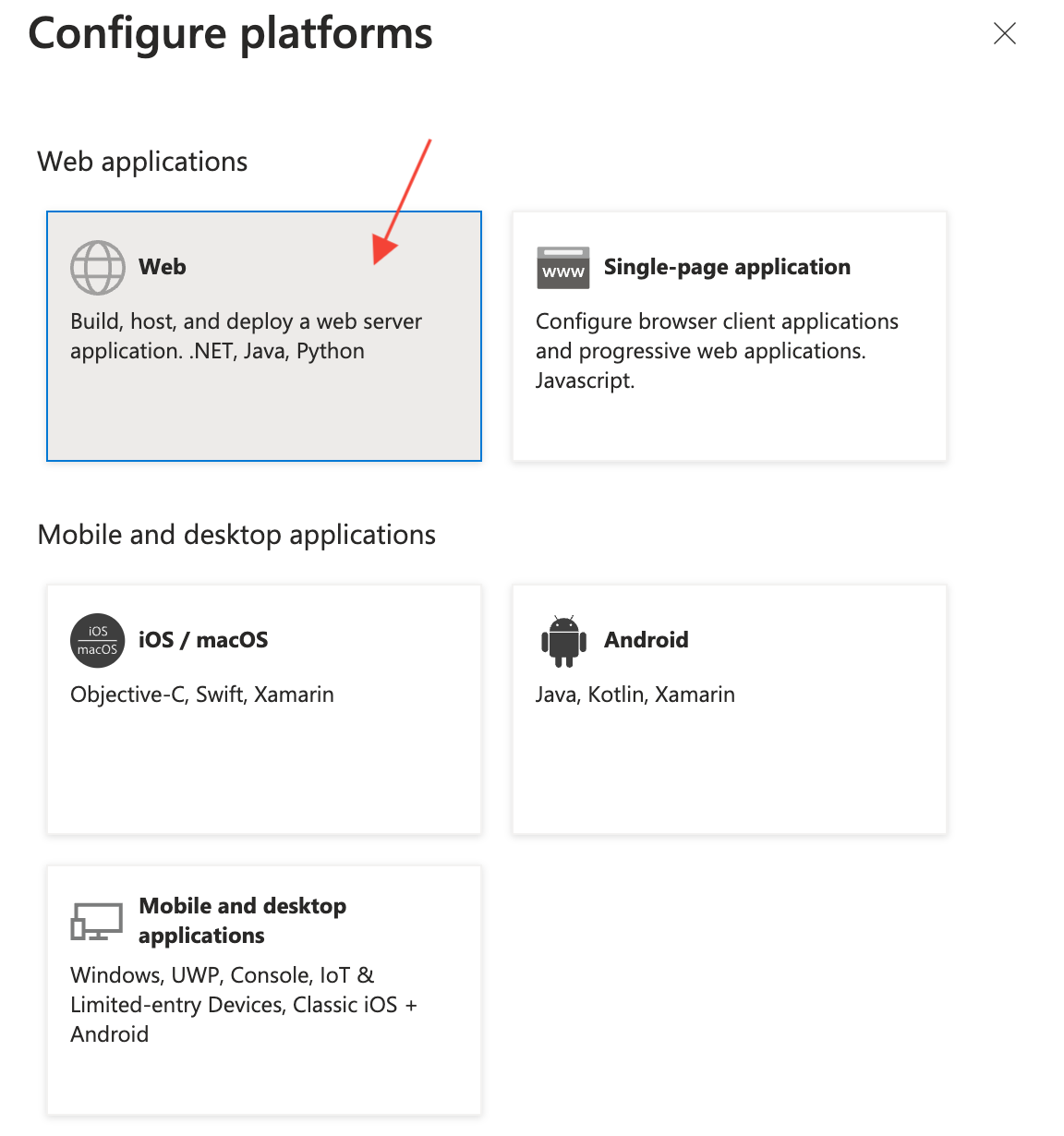

- In the Add a redirect URI section, select Web as the application type.
- The value of the redirect URI is: https://sso.illuxi.com/realms/production/broker/

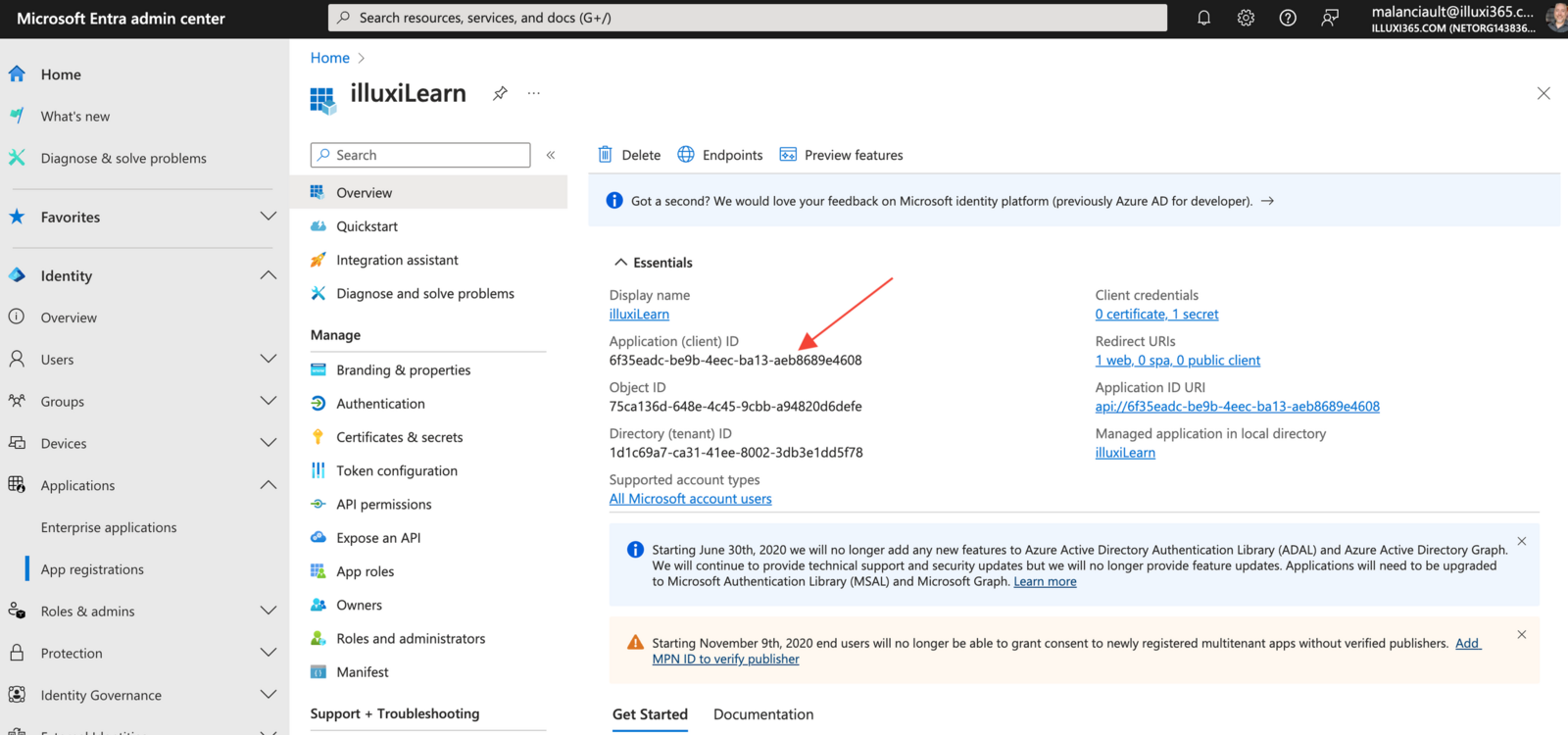

your-portal-key/endpoint (in the case of the Staging environment, use https://sso.staging.illuxi.com/realms/staging/broker/your-portal-key/endpoint) - Once completed, please note the Client ID and Tenant ID, as we will need them.
- In the Add credentials section, generate a Client Secret and copy its value (client secret value, not client secret ID), as we will need it.
2. Register a web API
Next, follow the instructions on this page: Register and expose a web API, with the following specifications:
After assigning an application owner, you will have defined:

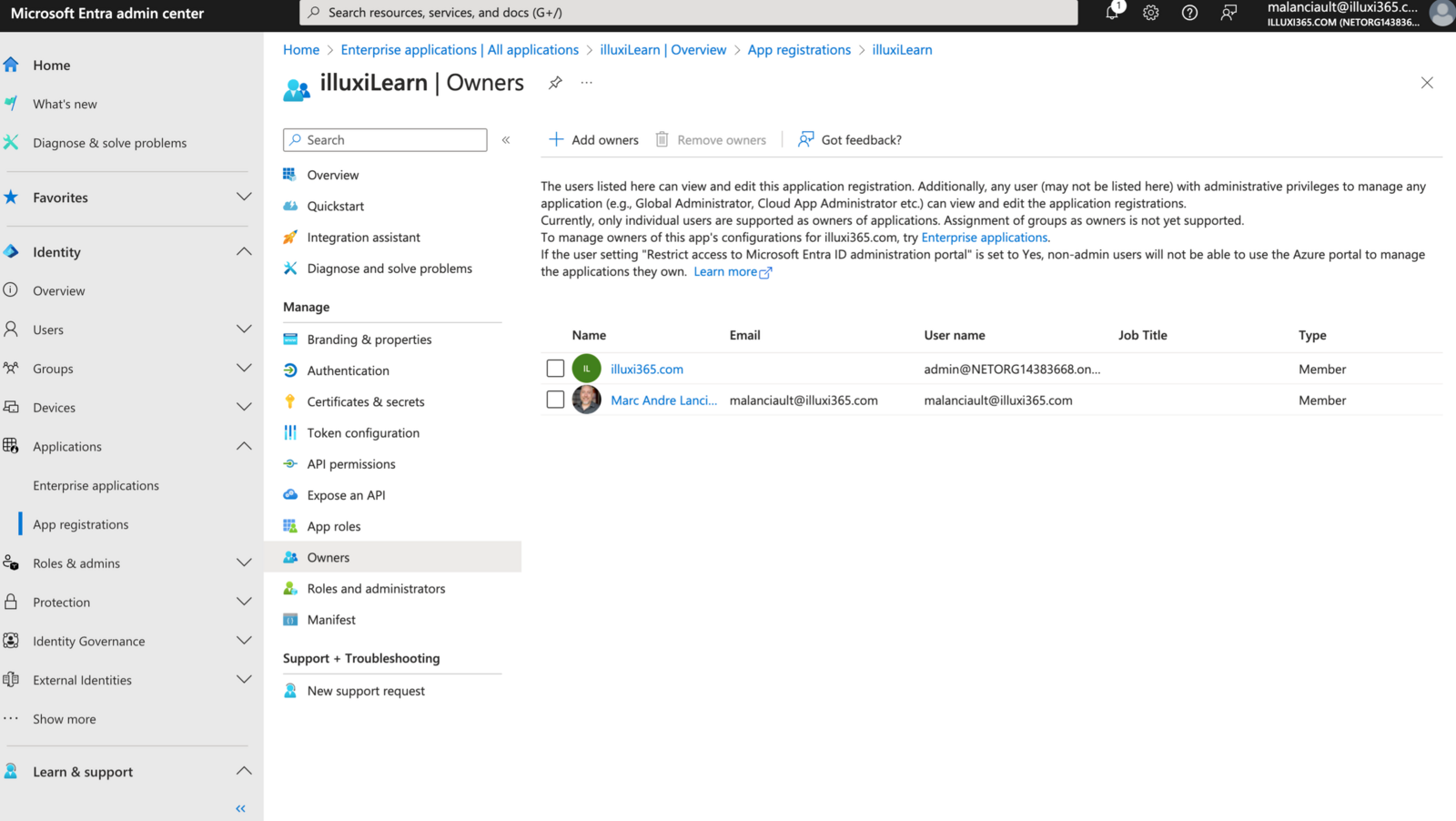

- One or more owners:

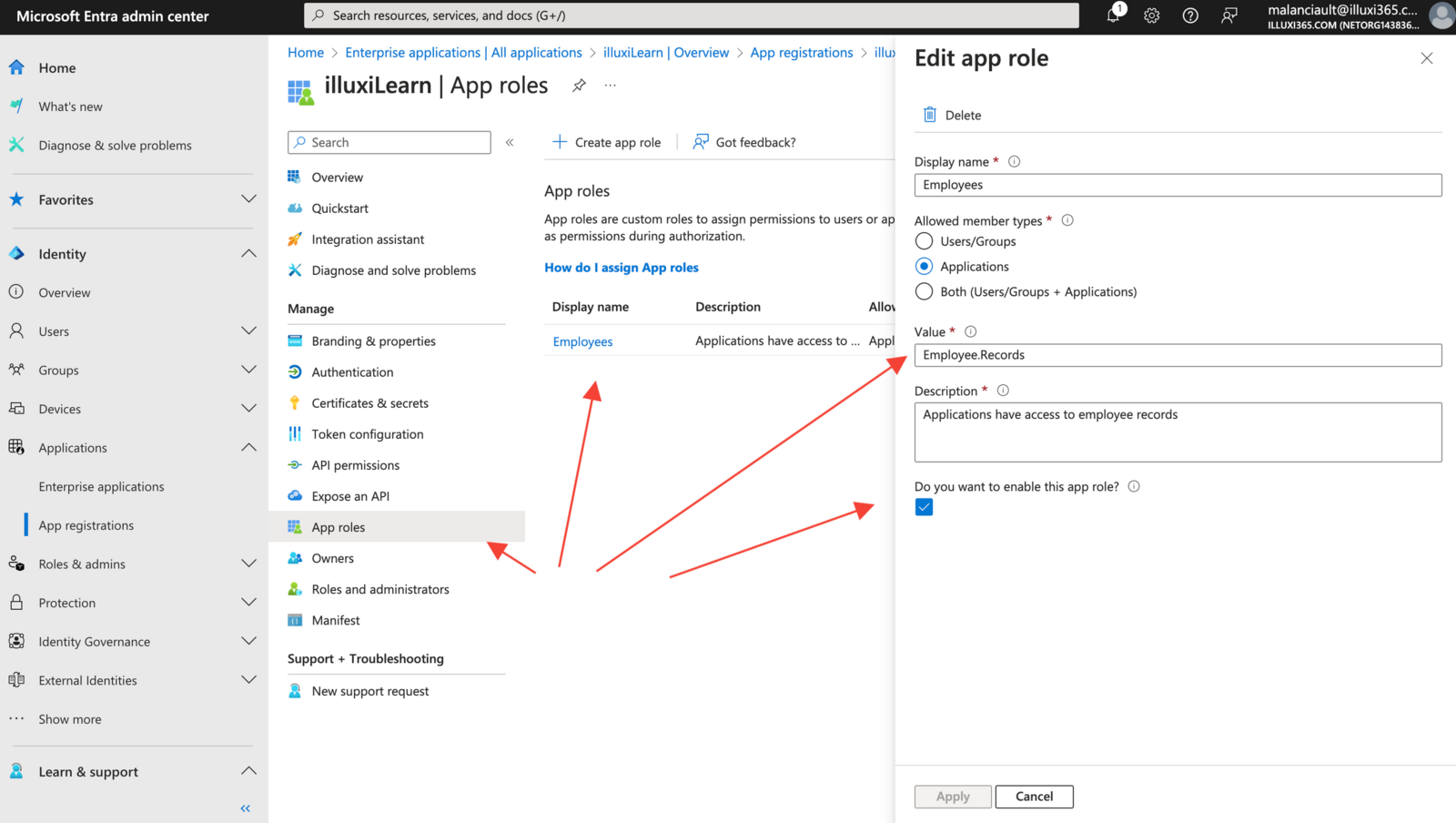

- An application role:

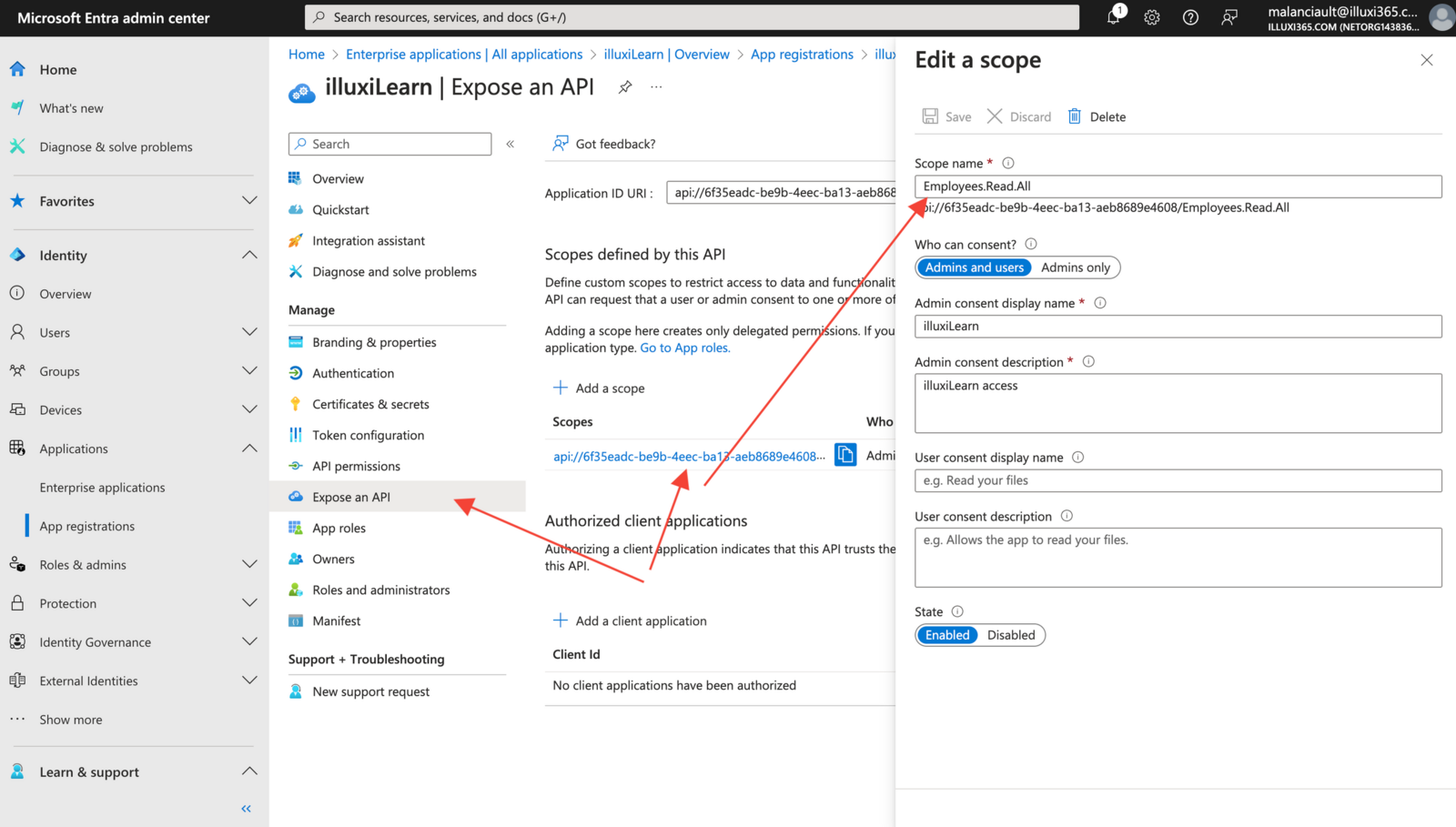

- A scope:
- Note that you do not need to define an admin consent-required scope, as illuxiLMS does not write to your Azure AD.
3. Configure illuxiLMS to access the web API
Follow the instructions on this page: Configure an application to access a web API, with the following specifications:

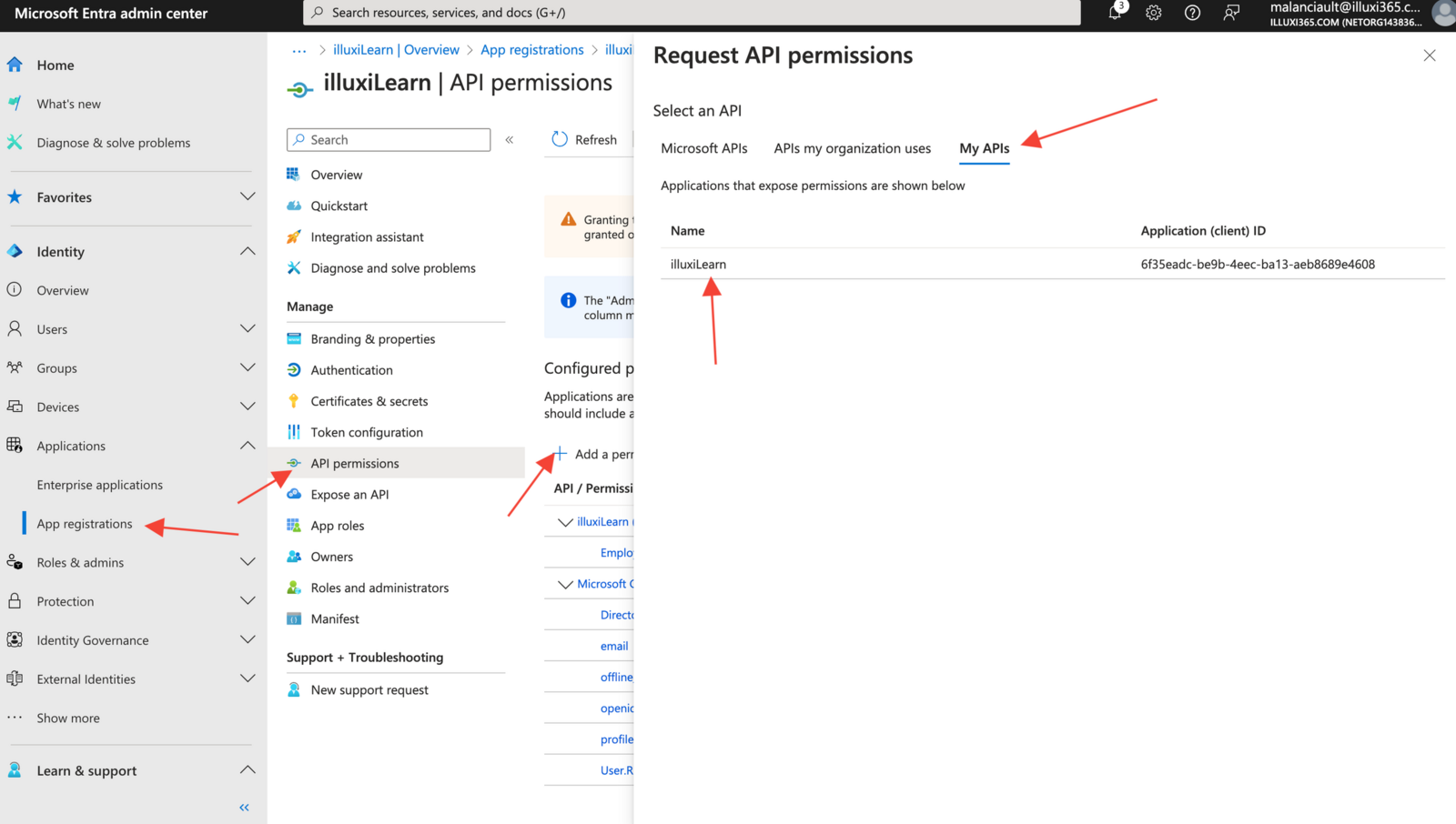

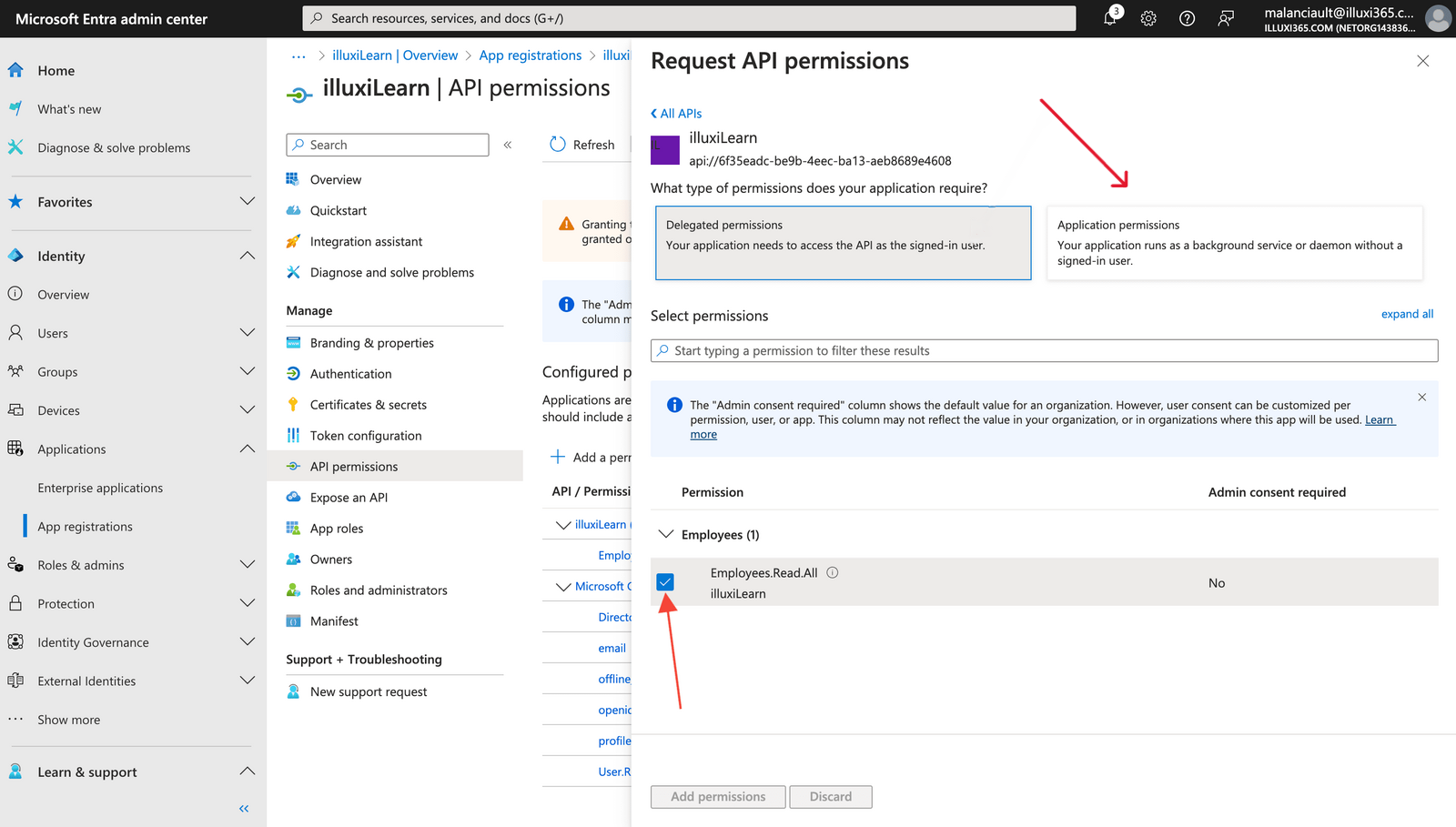

- In the Add permissions to access your web API section, you will allow illuxiLMS to access some basic user profile information by adding a permission linked to the illuxiLMS scope you created earlier:

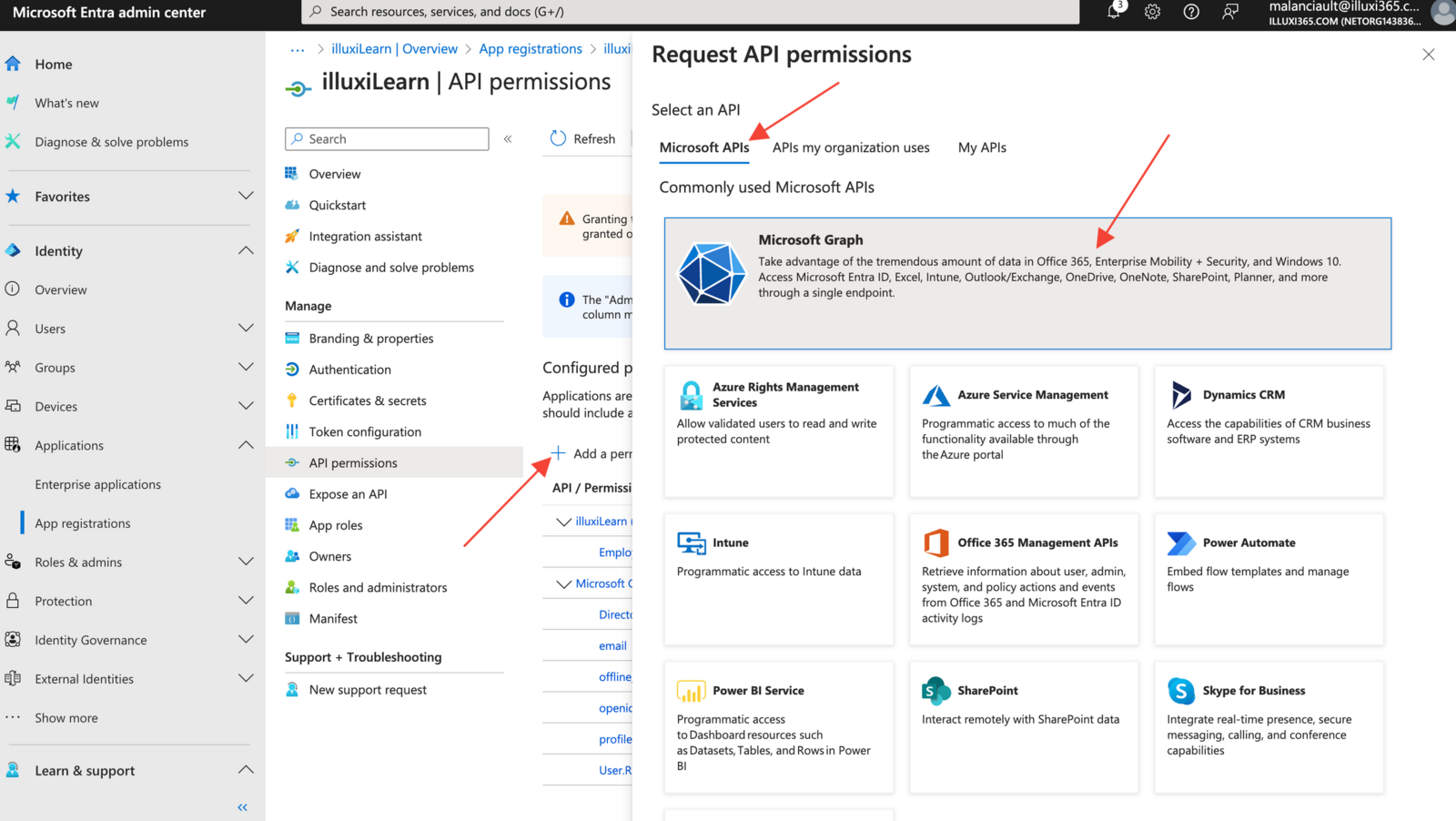

- In the Add permissions to access Microsoft Graph section, you will allow illuxiLMS to access specific profile information, particularly the groups users belong to:

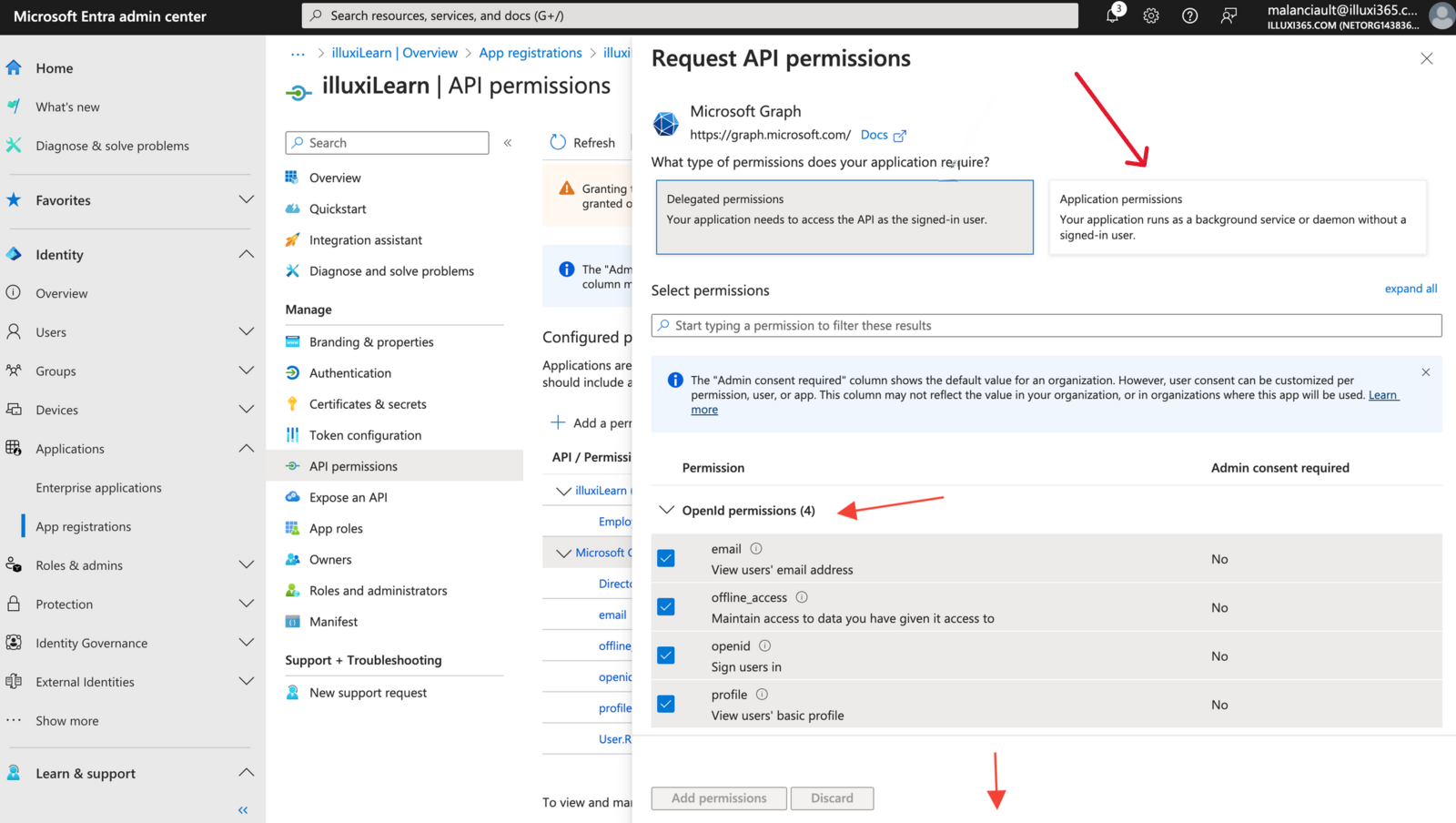

Select the following permissions:
- OpenID permissions >
email - OpenID permissions >
offline_access - OpenID permissions >
openid - OpenID permissions >
profile - Users >
User.Read - Directory >
Directory.Read.All
4. Create a test account
Once you have completed the previous steps, please create a test user account that will allow us to verify the integration on our end.
Ensure that this user is correctly assigned to a manager and is a member of at least the following two groups:
- illuxilms
- illuxilms-admin
5. Next steps
Once you have completed the steps above, please send the following information to support@illuxi.com:
- Your Azure domain name.
- The Tenant ID, Client ID, and Client Secret for the Staging app you created.
- The Tenant ID, Client ID, and Client Secret for the Production app you created.
- The email and password of a test user who has access to your Azure Active Directory AND belongs to the illuxilms and illuxilms_admin groups.
6. Questions and support
For any questions or support requests, please contact us at support@illuxi.com.
